PVC Calcium Sulphate raised floor
Code: PCF
Price: Liên hệ
The floor panel comprises Fibre-reinforced Calcium Sulfate of building material class A2 acc. to DIN 4102, Part 1. and classified A1 acc. to European standard DIN EN 13501. Further, the emission tests are carried out acc. to international requirements.
Color
LYD-01
LYD-02
LYD-03
LYD-04
LYD-05
LYD-06
LYD-07
LYD-08
LYD-09
LYD-10
LYD-11
LYD-12
LYD-13
LYD-14
LYD-15
Technical specifications
CTLINK® RAISED ACCESS FLOOR SYSTEM

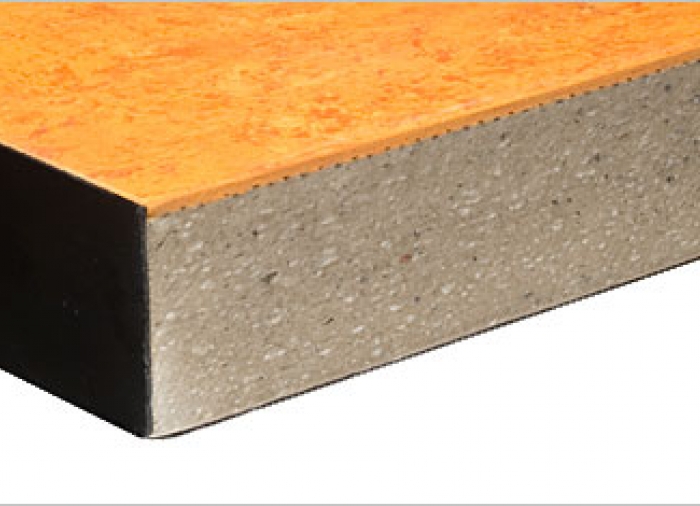

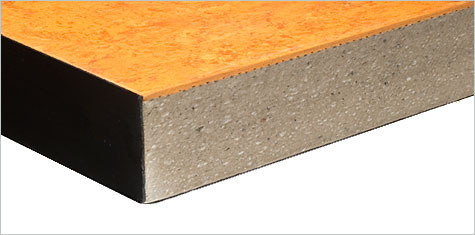

CTLINK® PVC CALCIUM SULPHATE RAISED FLOOR- Item: PVC Calcium sulphate raised floor
- No.: PCF
- Specifications: 600×600×30mm
- Panel material: Calcium Sulphate
- Bottom finish: Aluminum foil, Galvanized steel sheet , Coated steel shee
The floor panel comprises Fibre-reinforced Calcium Sulfate of building material class A2 acc. to DIN 4102, Part 1. and classified A1 acc. to European standard DIN EN 13501. Further, the emission tests are carried out acc. to international requirements.
FEATURE BENEFITS
◇ Made from recycled raw material
◇ Hazard-free and emission-free
◇ Good acoustic performance
◇ Excellent grounding and electrical continuity
◇ Class A flame spread and smoke development rating
◇ Excellent load-bearing capacity
◇ Excellent lateral stability
Advantages:
- High flexibility
- Easy installation of additional equipment & supply lines
- Huge installation plenum
- Easy handling of panel material
- Good fire protection properties (60 Min)
- Good sound absorption values
- Suitable for application of various floor coverings
- 100% Green Certified Floor
TYPICAL AREAS OF APPLICATION
(WOODCORE PANEL & CALCIUM SULPHATE PANEL)◇ IT rooms & switch centres
◇ Control stations, Telecom rooms, TV studios
◇ Power stations & Industrial rooms
◇ General office spaces
◇ School & shopping centers
◇ Banking & insurance offices
Understructure:
If specified any understructure can be customized with an electro-galvanized, gold chromatised, or electrophoretic coating.
Colors: Available in silver, yellow/tan, or black
Pedestal Height: 80mm -1500mm. Each pedestal allows for approximately 15mm-25mm height adjustment.
Pedestal Types:
Pedestal-PTS7
Specially designed for woodcore floor as standard pedestals.
Spec.:
3.0mm Thick *D90 round Top Plate
Tube 1: 22mm tube*1.2mm Thick Wall/M18 Screw
Tube 2: 25mm tube*1.2mm Thick Wall/M20 Screw
Tube 3: 25mm tube*1.5mm Thick Wall/M20 Screw
Tube 4: 32mm tube*1.5mm Thick Wall/M20 Screw
Above 4 types of tubes should be available according to your requirements.
Base Plate: 2.0mm Thick * 100mm Square
Stringer:
- Type FS-STG-1173: 20x30x1173mm (use for steel raised floor and calcium sulphate floor)
- Type FS-STG-540: 20x30x540mm (use for woodcore raised floor and calcium sulphate floor)
FS-STG-1173 FS-STG-540
TECHNICAL SPECIFICATION
Panel Dimension: 600mm x 600mm
Panel Thickness: 23mm to 39mm
Panel Top Finish: Bare / Laminated / Natural Stone
Panel Bottom Finish: Aluminum Foil/ GI Sheet
Side Finish: Full Edge PVC Trim
Main Core: Fibre-reinforced Calcium Sulfate
Point Load: 4.5 Kn to 6 Kn
UDL: 22 Kn to 25 Kn
Fire Rating: 60 MIN.
Building Material Class: A2
|
Type |
Thickness |
Fire |
Concentrated Load |
Impact Load |
Unifor Load |
Ultimate Load |
Rolling Load(N) |
||||
|
LB |
N |
KG |
10 times |
100000 |
|||||||
| CS-3001 |
FS800 |
600x600x30 |
A |
≥800 |
≥3350 |
≥363 |
≥536 |
≥11250 |
≥16100 |
3560 |
2670 |
| CS-3002 |
FS1000 |
600x600x30 |
A |
≥1000 |
≥4550 |
≥450 |
≥670 |
≥13350 |
≥23000 |
4450 |
3560 |
| CS-3003 |
FS1250 |
600x600x30 |
A |
≥1250 |
≥5560 |
≥567 |
≥780 |
≥16680 |
≥33000 |
5560 |
4450 |
| CS-3004 |
FS1500 |
600x600x30
|
A
|
≥1500
|
≥6675
|
≥670
|
≥1005
|
≥19892
|
≥34500
|
6675
|
5340
|
